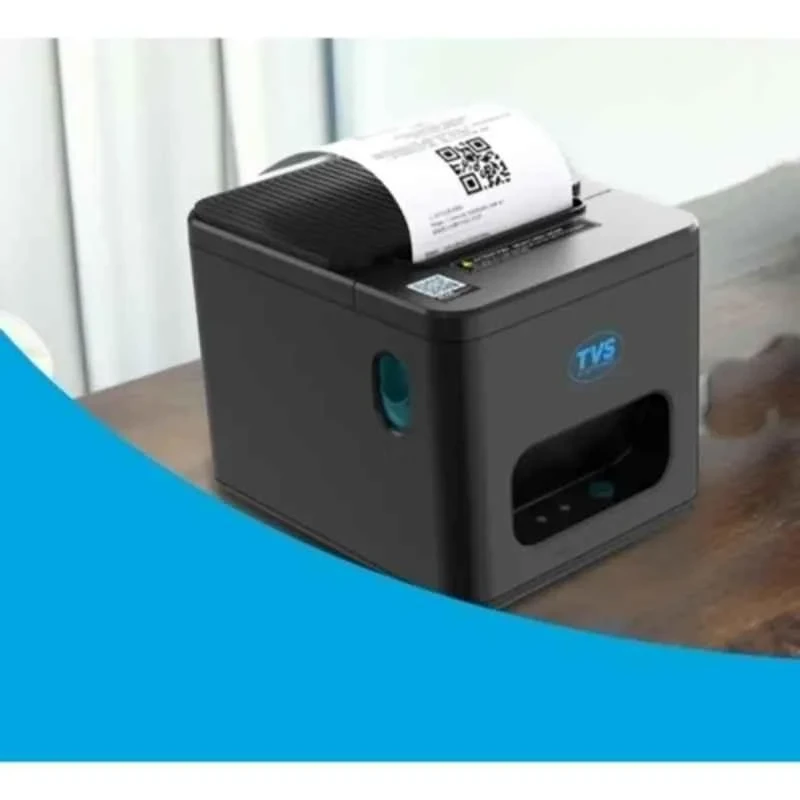

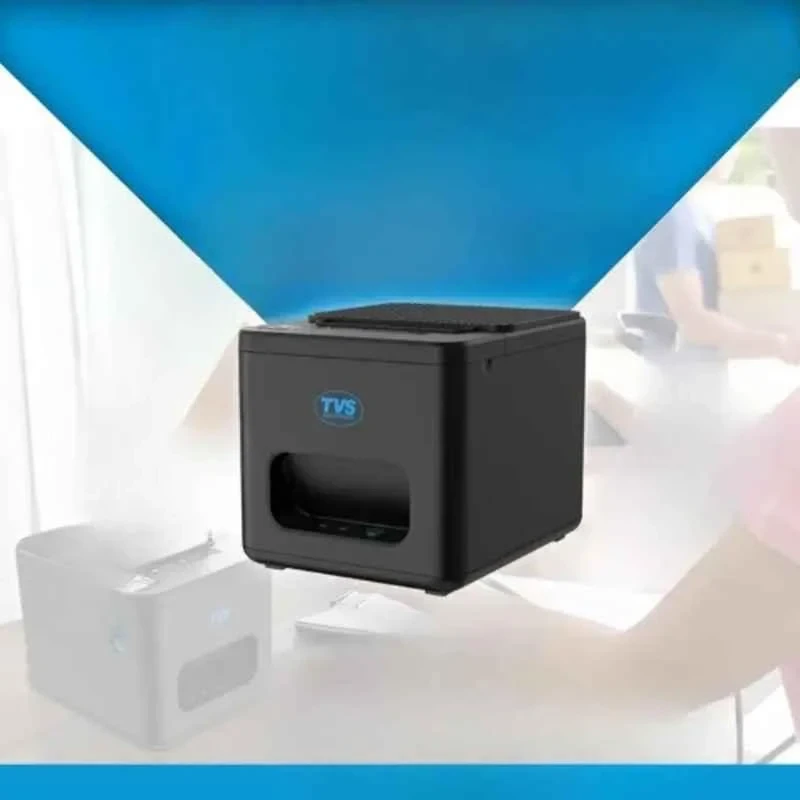

The TVS RP-3160 Gold AU is a high-performance 3-inch / 80 mm direct thermal receipt printer built for retail, billing, logistics, and other commercial environments. It delivers fast, sharp printouts with a resolution of 203 DPI and a maximum speed of 160 mm/sec. The printer supports multiple connectivity options (USB, serial, Bluetooth, and Ethernet in some versions), comes with onboard features like buzzer and sensors, and has a durable cutter mechanism rated for about 1,000,000 cuts. It is designed to be compact (21.3 × 12.4 × 14.2 cm) and robust with an onsite warranty of 1 year. Ideal for point-of-sale systems, receipt generation, barcode/work order printing, and similar tasks.
Direct supply from TVS Electronics.
Built-in barcode font printing support.
Multiple connectivity options: USB, Serial, Bluetooth; some variants include Ethernet.
Compact design / small footprint.
High resolution: 203 DPI ensures clear, crisp output.
Fast print speed: up to 160 mm/sec.
Supports cash drawer port & sub-interface.
Durable cutter rated for ~1,000,000 cuts.
Flash memory (for fonts/logos) onboard.
Supports multiple Indian languages & combinations (English, Devanagari etc.) in some modes.
| Specification | Detail |
|---|---|
| Print Model | RP 3160 Gold AU |
| Printing Method | Direct thermal-line printing |
| Resolution | 203 DPI |
| Max Print Speed | 160 mm/sec |
| Print Width | 80 mm (≈ 3-inch) |
| Flash Memory | 4 MB, with logo memory ~120 KB in some versions |
| Receive Buffer | 4 KB or 45 bytes |
| Interfaces / Connectivity | USB, Serial, Bluetooth (varies by model), some versions with Ethernet |
| Paper Type & Width | 80 ± 0.5 mm width; supports continuous, marked, thermal surface left/middle/right; thickness ~0.06-0.08 mm |
| Paper Roll OD (Outer Diameter) | Up to 83 mm |
| Cutter | Full cut / partial cut / tear-off; lifetime ≈ 1,000,000 cuts |
| Sensors / Indicators | Paper existence detection (photoelectric sensor), LED indicators for power/error; buzzer onboard |
| Power / Voltage | ~100-240 VAC, 50/60 Hz input; output 24V ±5% DC, ~1.5A in some variants |
| Printer Head Lifetime | Approx. 100 km of printing |
| Colour | Black |
| Warranty | 1 year onsite |
| Weight | ~2.74 kg |
| Dimensions (L×W×H) | ~21.3 × 12.4 × 14.2 cm |
| Country of Origin | India |
