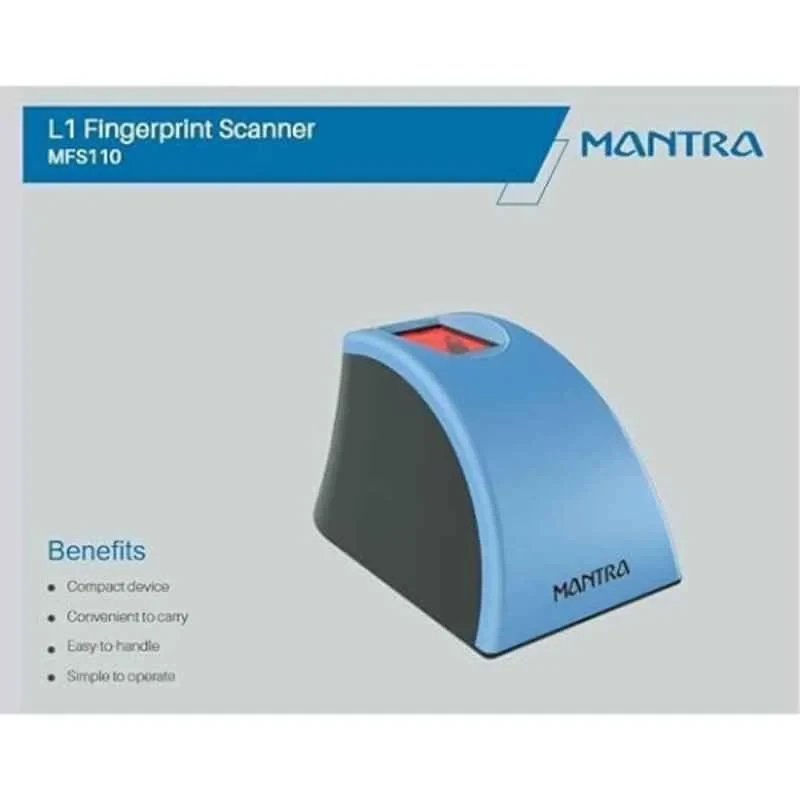

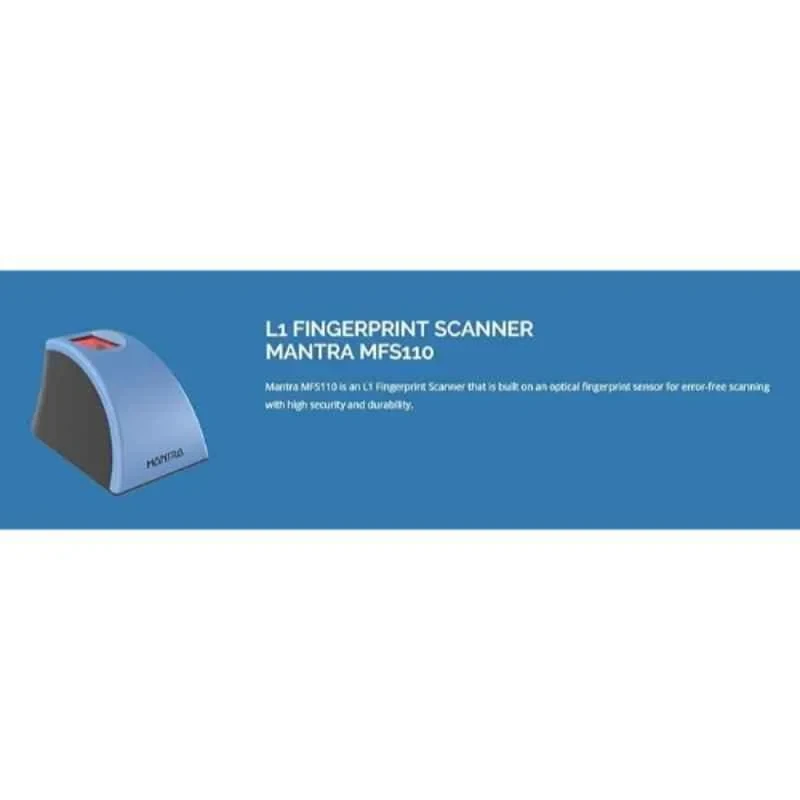

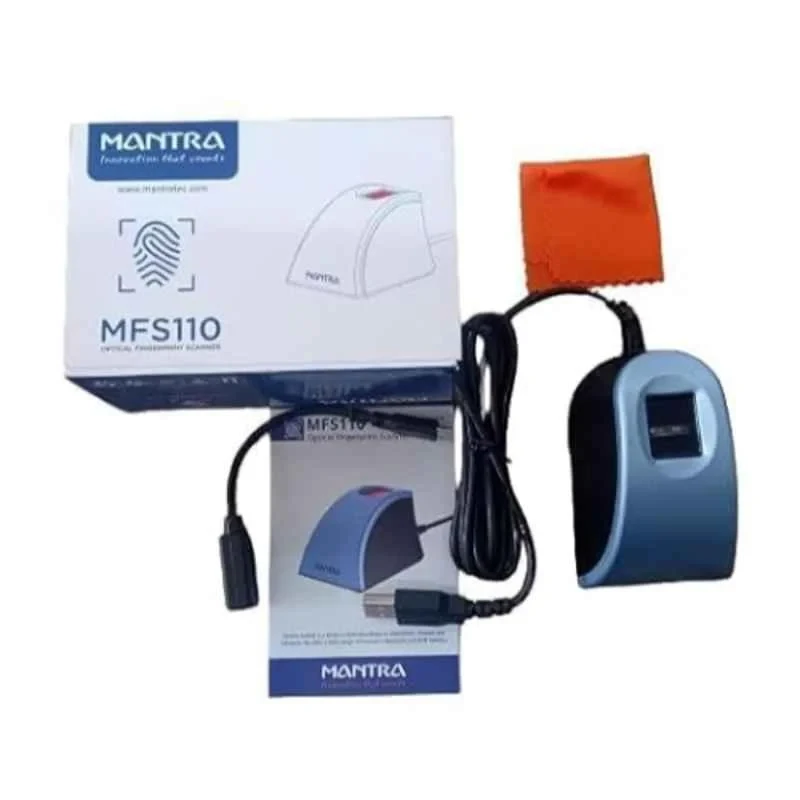

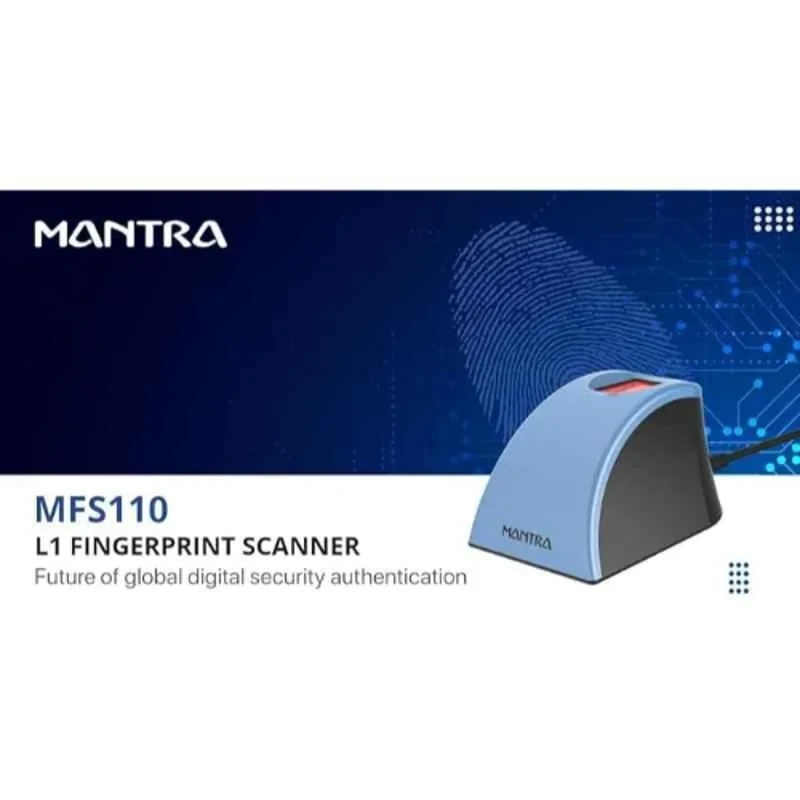

The Mantra MFS110 L1 is a Level 1 (L1) optical fingerprint scanner that ensures secure and reliable biometric data processing. Ideal for identity verification, access control, and authentication, it offers a user-friendly interface and robust performance.
Scratch-Free Sensor Surface: Durable design for long-term use.
Auto Finger Detection: Automatically detects finger placement for seamless operation.
High-Speed USB 2.0 Interface: Ensures quick data transfer and secure communication.
MINEX Compliance Extractor: Facilitates interoperability with Aadhaar systems.
Low FAR and FRR: Minimizes False Acceptance Rate and False Rejection Rate for accurate identification.
Compact and Ergonomic Design: Easy to handle and operate.
| Parameter | Details |
|---|---|
| Sensor Type | Optical |
| Resolution | 500 DPI ±2% |
| Platen Area | 14.0 mm x 17.0 mm |
| Sensing Area | 13.0 mm x 16.5 mm |
| Image Size | 276 x 336 pixels |
| Light Source | Red LED |
| Capture Mode | Auto capture with built-in quality check (NIST compliant) |
| Interface | USB 2.0 |
| Operating Voltage | 5V ±5% (USB powered) |
| Operating Current | <90 mA |
| Standby Current | 50 mA |
| Dimensions (LxWxH) | 61 x 91 x 54 mm |
| Weight | 0.140 kg |
| Operating Temperature | 0°C to 50°C |
| Humidity | <90% RH, non-condensing |
| Certifications | FBI PIV, STQC, CE, FCC, RoHS |
| IP Rating | IP54 (dust and water resistance) |
